| Displacement cc/rev: | 10 - 40 |
| Gear Widths: | 1/2" - 2" |
| Max PSI / BAR: | 4500 / 310 |
| RPM: | 600 - 3000 |
P124 / 424 Gear Pump
P124 / 424 Series
The P124 / 424 series is a small displacement, high pressure bushing gear pump from Permco. (7cc/rev available as a rear section)
Free Technical Downloads
Permco 124/424 Data Sheet Permco-124-Codebook
Product Overview
The Permco P124 is a small frame sized hydraulic bushing gear pump with high pressure capabilities. The 424 series has the same characteristics as the 124 series, except is capable of even higher pressures.
The gear pump is built from cast iron ensuring a strong and long lasting product, which can stand the most robust applications. Single & multiple units are available as per your requirements. The pressure loaded wear plates of the pump, provides you with a high efficient product.
A wide range of configurable mounting, shaft and porting options are available to suit your unique requirements. (Please see bottom of the page for more info.)
Compatible with Mineral Oil, Water Glycol, Invert Emulsion & Fire Resistant fluids.
Spare parts available from stock, such as seal kits, flanges, shafts and individual pump sections enabling a fast turnaround for you if required.
Our Service to you
We machine, build from stock and test the P124 / 424 gear pump on site, to ensure the highest quality and a workable product is delivered to you. The P124/424 gear pump also comes with a 12 month warranty.
In the event your product breaks down in the first 12 months, please CONTACT US so we can discuss your warranty rights with you.
In the event of an emergency or you have a machine breakdown; we can supply this product to you with a 24 / 48 turnaround.
Common Applications
Customers of ours have used this product in applications such as:
- Hydraulic power packs
- Dump trucks
- Fork lifts
But can be applied to a wide range of mobile machinery within a variety of industries.
ATEX Information
The P124 / 424 can be supplied as an ATEX gear pump if required. ATEX Group I & II approval is required, if the product will be used in potentially explosive atmospheres. ATEX gear pumps are ideally suited for applications in the mining, oil & gas industry
Mounting, Drive Shaft, Porting Options
Product Coding Example

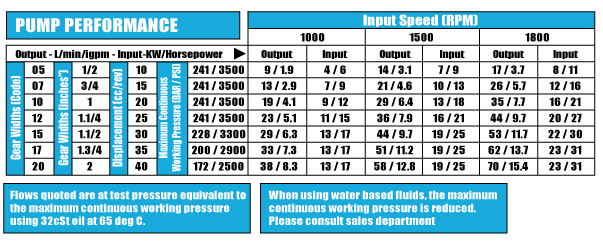

Pump Performance
Recommended Operating Conditions
- Fluid viscosity, normal operating conditions 9 – 220 cst.
- Fluid temperature should not exceed 82 deg C for mineral oil or 57 deg. C for water glycol.
- Fluid cleanliness, 10 micron filter with Beta 200 rating is recommended.
- Inlet pressure; for best operation with mineral oil, pressure should not exceed minus 0.237 BAR (7 in HG) or with water glycol, minus 0.101 BAR (3 in HG)
Weights & Dimensions
